Elevating Weld Quality Through Precision & Insight

At Axiom Quality, our NATA-accredited Macrographic Testing of Welds service delivers fast, reliable insights into internal weld structures, ensuring compliance, safety, and performance across industries.

Whether you’re qualifying procedures or verifying production welds to Australian or International standards, our team provides clear, actionable results that enhance confidence and reduce risk.

What is Macrographic Testing?

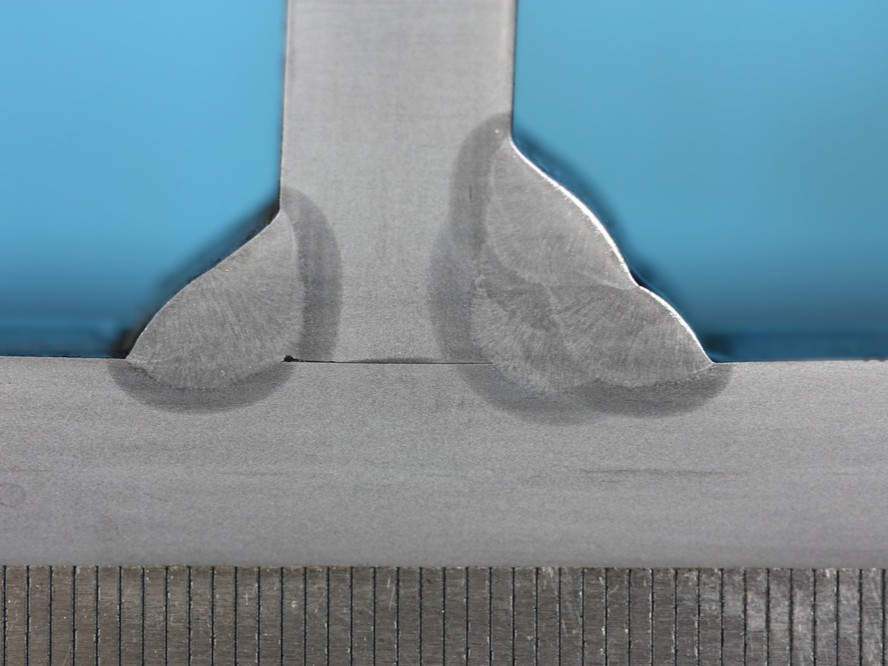

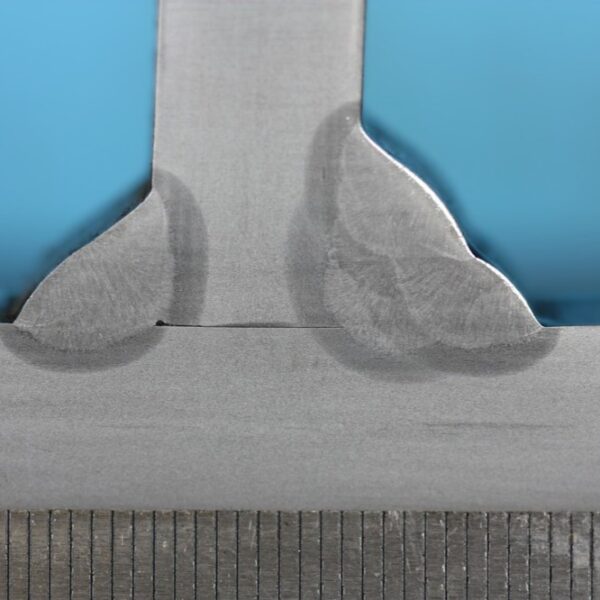

Macrographic Testing is a destructive metallurgical method used to examine the internal features of a weld. It involves sectioning a sample, polishing the cross-section, and etching the surface to reveal:

• Weld geometry — bead shape, reinforcement, throat size, bead sequence
• Penetration — depth of root penetration and fusion
• Fusion quality — whether the weld fused properly to the base metal and between passes
• Heat‑affected zone — width and characteristics
• Internal defects — porosity, cracks, slag inclusions, lack of fusion, lack of penetration, undercut, overlap
